Network Architecture: Application Manager

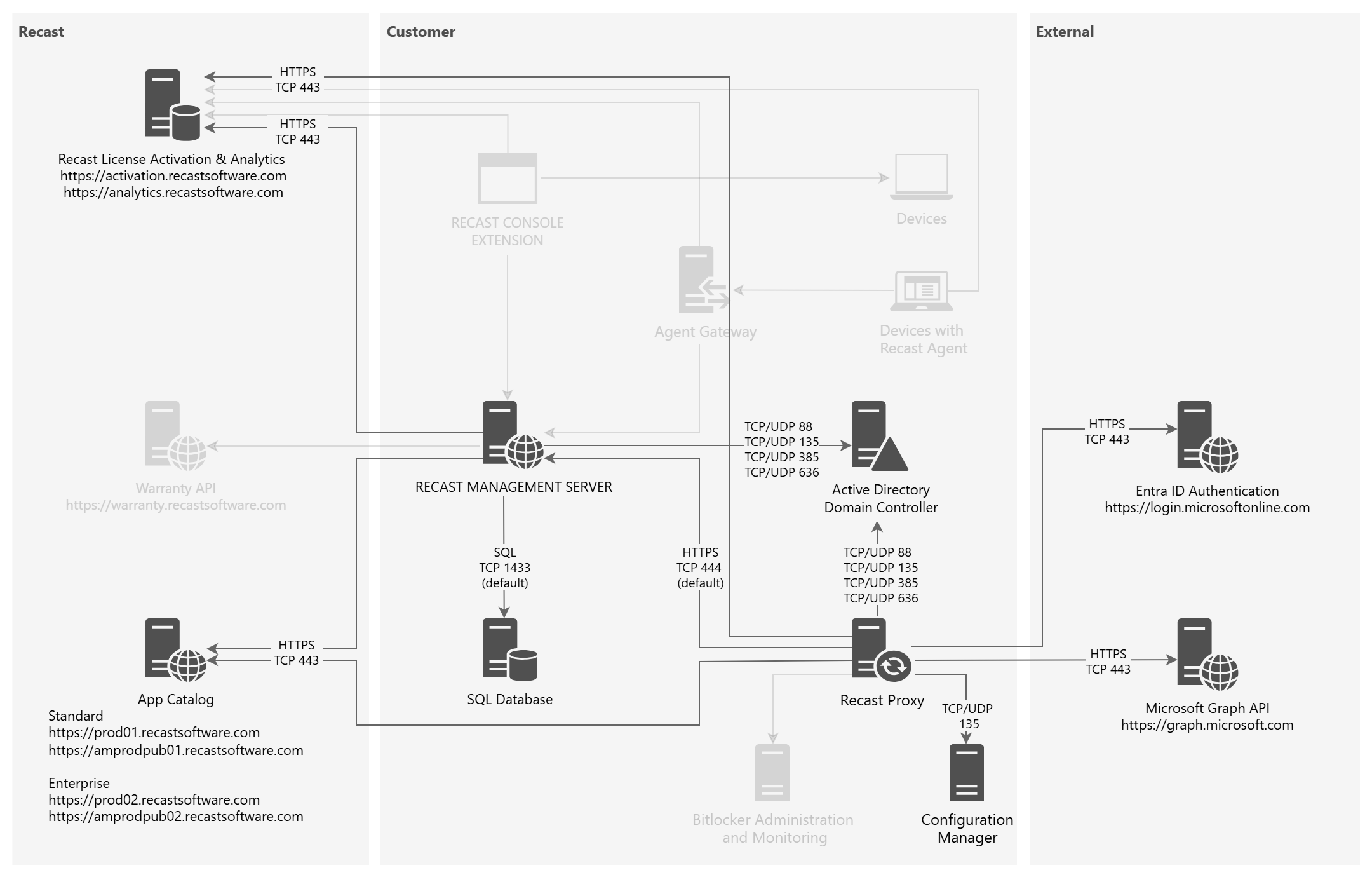

This network architecture diagram includes Recast components, as well as internal and external connections, that are required to implement Application Manager.

Installation Notes

  • The Recast Management Server can be installed on the primary Configuration Manager server or on another server.
  • The Recast Proxy can be installed on the same server as RMS or on a separate server.
